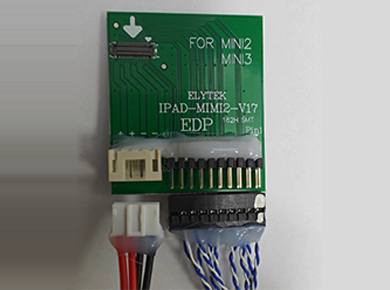

MINI2 / MINI3 gusset plate

Used for testing the mini2 mini3 LCD, pay attention to the image threshold has black dupont PIN1 docking way

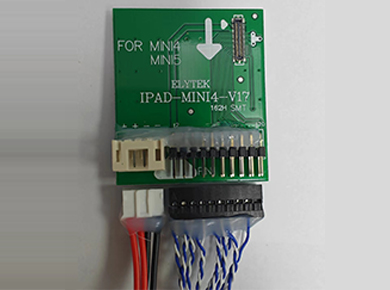

MINI4 / MINI5 gusset plate

Used for testing the mini4 mini5 LCD, pay attention to the image threshold has black dupont PIN1 docking way

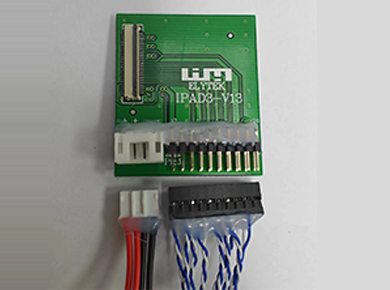

IPAD3 gusset plate

Used for testing the IPAD3 LCD, pay attention to the image threshold has black dupont PIN1 docking way

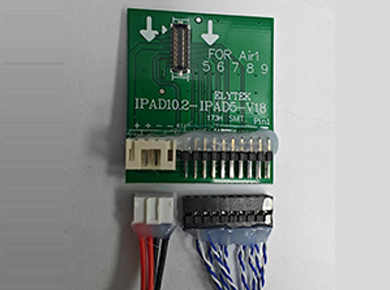

Lofty gusset plate

Used for testing the lofty / 6/7/8/9 and 10.2 LCD, pay attention to the pictures with black PIN1 docking way dupont white dot

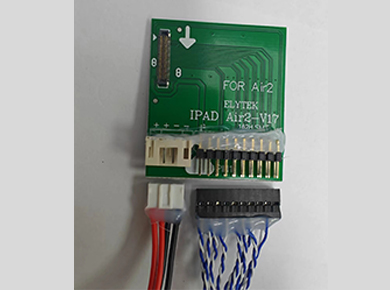

IPAD6 air2 gusset plate

For testing IPAD6 air2 LCD, pay attention to the pictures with black PIN1 docking way dupont white dot

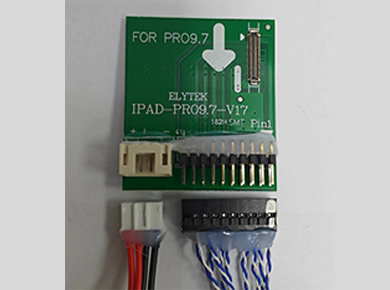

Small IPAD9.7 inch PRO gusset plate

Used for testing small PRO 9.7 -inch LCD, pay attention to picture has black PIN1 docking way dupont white dot

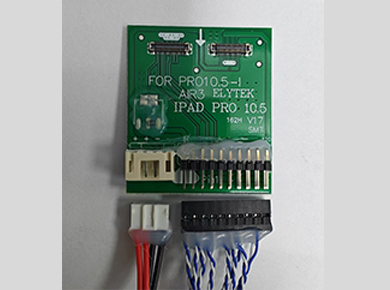

IPAD10.5 gusset plate

For testing IPAD10.5 LCD, pay attention to the pictures with black PIN1 docking way dupont white dot

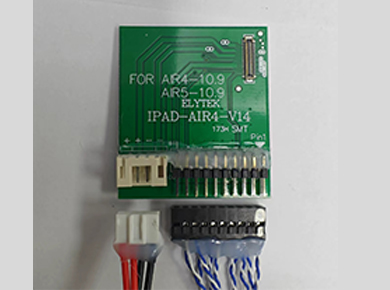

IPAD10.9 gusset plate

For testing IPAD10.9 air4 / air5 LCD, pay attention to the pictures with black PIN1 docking way dupont white dot

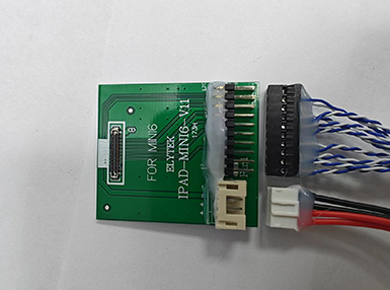

MINI6 gusset plate

Used for testing the mini6 LCD, pay attention to the image threshold has black dupont PIN1 docking way

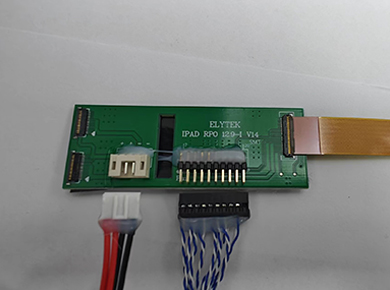

The gusset plate IPAD12.9 generation

Used to test the 12.9 generation of LCD, note: need to match other 1 the FPC soft connection LCD screen, as shown in figure. Interface only 1/2 pick one of them can be backlit, interface 1 is broken can meet interface 2. Note pictures have black PIN1 docking way dupont white dot

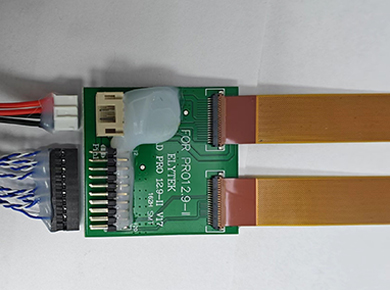

IPAD12.9 second generation gusset plate

Used for testing the 12.9 second generation LCD, note: need to match other 2 FPC soft connection LCD screen, as shown in figure. Note pictures have black PIN1 docking way dupont white dot

Dupont line special for the test

Dupont line special for the test used to test the buckle end with the tester, the raising of the clamp connection

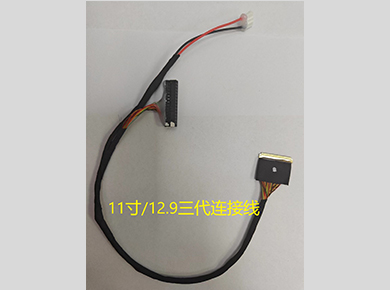

The test 11 "/ 12.9 three generations of special cables

For 11 "soft and tester, the raising of the clamp connection

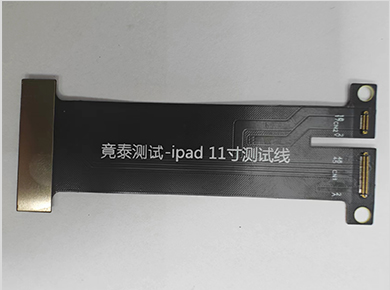

IPAD11 inch test line

Used for testing IPAD11 inch LCD, pay attention to the screen carefully docking and disconnect

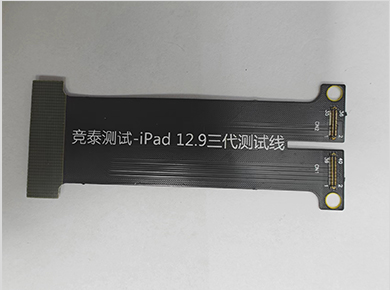

IPAD12.9 three generations of the test line

Used for testing IPAD12.9 three generations of LCD, pay attention to the screen carefully docking and disconnect

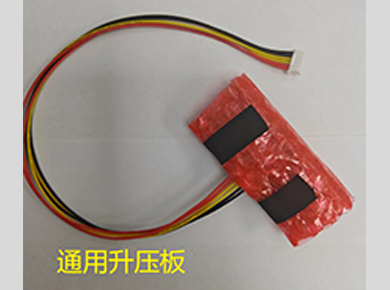

L clamp

The litres of platen, tests for general backlight is mainly used for drivers. If you encounter a backlight is dark or bright backlight, can replace the components, troubleshooting

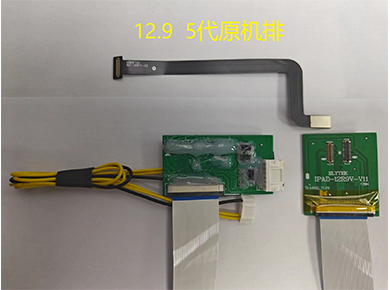

IPAD12.9 five generations test line

Used for testing IPAD12.9 five generation of LCD, pay attention to the screen end and disconnect, careful docking for enquiry us.
