The instructions on EDP fully functional tester
1, first of all, the need to test the LCD type search on the net, and determine the type of screen resolution. And then query the corresponding number. Each resolution points 6 and 8, a total of 6 Numbers, can try them one by one. Most of the screen with six and eight screen can be normal light, a screen is not. Require higher test must select the exact screen participated.

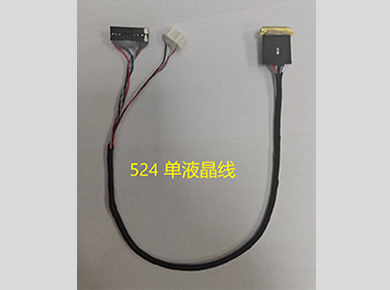

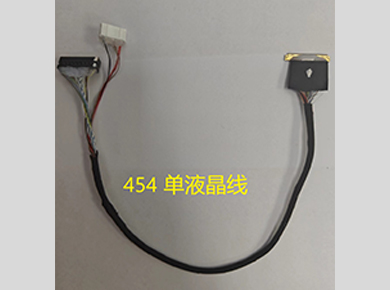

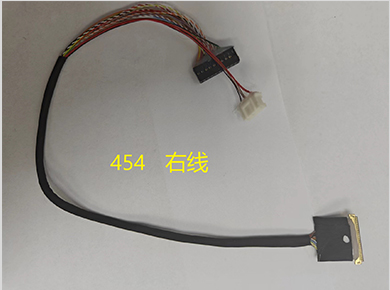

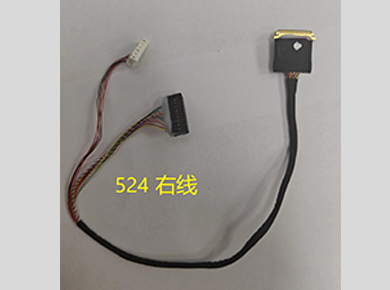

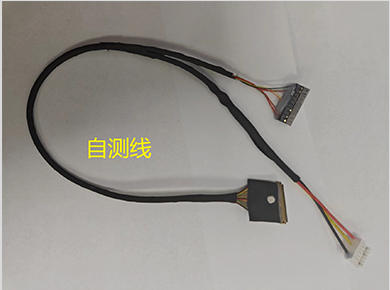

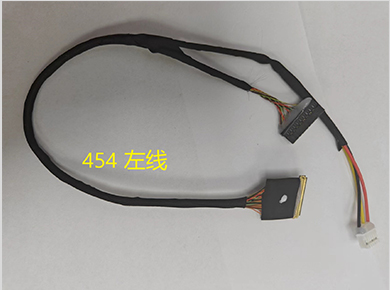

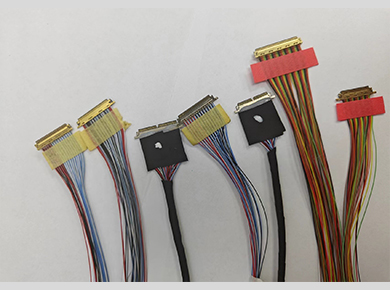

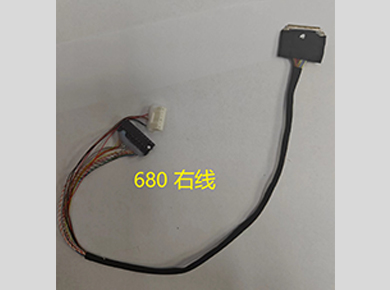

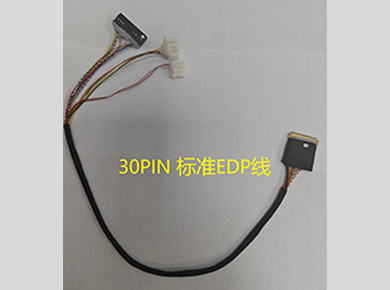

2, EDP panel of 30 needle normally 0.5 spacing. Screen meter measuring line can pass the standard of 80% of the EDP screen, compatibility, and high and low resolution this difference with an LVDS panel. Screen line generally pick tester. A, C, D, points out when the screen back light, but the screen flashes or black screen, with B, C, D, some manual line not C, only need to use B, D can be. Screen models begin with VVX EDP panel line are not applicable, must to hand-made lines. AU contains B116HTN, B133HTN B140HTN, B156HTN screen with B, C, D to display properly. Strange beauty N133HSE - EA3 / EB3 with B, C, D to display properly.
3, fully functional EDP tester, tester is fully compatible with the old one even screen line, corresponding to the screen line interface for A, C, D. This tester is otherwise intelligent screen mode, but only applies to 70% of the screen. If 01 and 02 intelligent screen points out under the condition of back light liquid crystal screen, need through participated in accurate screen size to display properly.
4, if part of the screen backlight is not bright, normal signal display indicates the glass screen without bringing a backlight booster module, need another hand-made screen lines and external constant current board.
Line 5, manual custom screen part please contact related sales personnel
